Sealants - Fire Stopping Systems

CRI has been reinstating fireproofing on steel structures, vessels, furnaces, boilers and tanks by removing expired and damaged fireproof protection and replacing it with new cementitious fire protection material. The bulk of these projects have been done on petrochemical refineries.

Our expertise encompass the supply and installation of the following sealant fire stopping systems.

PYROCOUSTIC® INTUMESCENT

Pyrocoustic® Fire Resistant Sealant is a water based acrylic sealant used to reinstate the fire resistance of wall and floor constructions where apertures are penetrated by multiple services and linear gap seals where wall and floor constructions abut. Pyrocoustic® Sealant is extensively tested for global requirements, it is supplied in: 600ml foils.

APPLICATIONS:

  • Head of walls
  • Blank openings
  • Multi service penetrations
  • Cable trays and cable ladders
  • Metallic Pipes, Cables and Cable bunches
  • Flexible walls, rigid walls and rigid floors

PROPERTIES:

  • Provides a smoke seal
  • Easy gunning and application
  • Halogen free, resist fungi and vermin
  • Flexible, high performance water based fire sealant

TECHNICAL SPECIFICATIONS:

Colour: White, paste, matt finish
Slump: 5mm after 1hr in 30mm joints
Cured Rate: 3mm per day at 50% relative humidity 23ͦC
Shrinkage: Approximately 12%
Application Temperature: +5ͦC to 40ͦC
Water Resistance: Good when fully cured
UV Resistance: Good
Shelf life: 18 months
Fire Rating: Up to 240 minutes

I need more information, Please contact me?

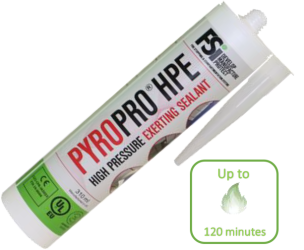

PYROPRO® – HPE

PyroPro® HPE Sealant is a water based acrylic sealant used to reinstate the fire resistance of wall and floor constructions in apertures when penetrated by single or multiple services. PyroPro® HPE Sealant has been developed utilizing specialist intumescent technologies which result in the sealant expanding in the presence of heat or fire to reinstate fire resistance where combustible services are present. The expansion of PyroPro HPE is fast acting and up to 25 times. The expanding sealant fills the void left by combusting materials and remains in place, exerting a pressure on the surrounding substate upholding the fire resistance of the compartment.

APPLICATIONS:

  • Rigid wall and floors, flexible wall and batts in wall and floor.
  • Linear Joints up to 20mm wide
  • Large service openings up to 300mm x 100mm
  • Batt aperture up to 1100mm x 750mm
  • Metallic Pipes, Cables, Cable Bunches (incl. Telecommunication),
    Cable Trays and Cable Ladders

PROPERTIES:

  • Causes no known affects to plastic pipes, plastic cables, sheathing or metallic components
  • Easy clean up with water and is odourless
  • Over paintable
  • Smoke, gas, water tight and air tight
  • High Expansion Ratio

TECHNICAL SPECIFICATIONS:

Colour: Dark Grey / Black
Shore Hardness: 68
Cured Time:1.7mm per 24 hours
Density: Ca. 1.23 – 1.33g/cm³
Application Temperature: +5ͦC to 35°C
Expansion Ratio: Up to 25 times
Insulation: 120
pH: 6-9
Fire Rating: Up to 240 minutes

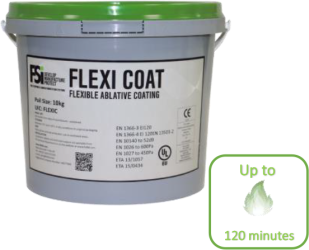

FLEXI COAT®

Flexi-Coat® is a highly flexible water based, acrylic coating used in linear gaps where voids are present in floor and wall constructions as well as service penetrations to reinstate the fire resistance performance.
The Flexi-Coat® system offers excellent movement and acoustic capabilities. Flexi-Coat® can offer up to 50% movement. Supplied in liquid form in 20kg, pails, the Flexi-Coat® can be poured, trowelled or sprayed into the aperture between the separating elements to a specified depth utilising Mineral Wool backing material.

APPLICATIONS:

  • Cable trays and cable ladders
  • Flexible linear joint sealing system
  • Suitable for voids up to 500mm wide
  • Metallic Pipes, Cables and Cable bunches

PROPERTIES

  • Highly flexible and water resistant
  • Halogen free, resist fungi and vermin

TECHNICAL SPECIFICATIONS:

Colour: White
Coating Thickness: 2.5mm Nominal, wet coating thickness
Cured Rate: 3mm per day at 50% relative humidity 23ͦC
Coverage: 2.8kg/m², 2.24L/m²
Application Temperature: +0C to +30ͦC
Applied by: Spray, brush or trowel applied
Shelf life: 18 months unopened
Fire Rating: Up to 120 minutes

PIPEBLOC PWP® INTUMESCENT PIPE WRAP

PipeBloc® PWP Wraps are designed and tested to seal service penetration apertures containing plastic pipes formulated with thermoplastic composites based on reactive intumescent technology. The individual PWP Wraps have been developed to provide a high volume expansion and pressure seal during a fire. The PipeBloc® PWP wraps can be used to a maximum diameter of 200mm. The ultra-thin design of PipeBloc® PWP wraps ensures that they can be installed into the tightest of locations.

APPLICATIONS:

  • Flexible walls, rigid walls, rigid floor constructions, in bat seals and combustible plastic pipe penetrations

PROPERTIES

  • Internal use only
  • High performance intumescent
  • Not affected by fungus, vermin or rodents
  • Based on a thermoplastic composite and is therefore on-toxic
  • Halogen free, contains no asbestos, ceramic or mineral fibres and is environmentally friendly

TECHNICAL SPECIFICATIONS:

Colour: Green plastic packaging
Sizes: 110mm and 160mm x 40mm
Thickness: 2mm at 32mm upto 12mm at 250mm
Density: Approximately 1.2 g/cm³
Volume Expansion: Approximately 25 times
Expansion Pressure N/mmP: 1.30
Compatible with: Polypropylene (PP), polyethylene (PE)
and polyvinylchloride (PVC) pipes.
Shelf life: N/A
Fire Rating: Up to 240 minutes

PIPEBLOC EL®

PipeBloc® EL system is designed and tested to seal service penetrations in apertures containing combustible services. PipeBloc® EL has been developed utilizing specialist intumescent technologies which result in the wrap expanding in the presence of heat or fire. This expansion is fast acting and up to 25 times. The expanding intumescent fills the void left by combusting materials and remains in place, exerting a pressure on the surrounding substrate upholding the fire resistance of the compartment. This uniquely formulated product allows it to be tested and Certified to internationally recognised standards, including, Certifire, CE marking and UL Listings. PipeBloc® EL Wrap has been tested and Certified as part the FSi Fire Stopping range. The PipeBloc® EL system can be installed across a variety services and substrates.

APPLICATIONS:

  • Flexible walls, rigid walls, rigid floor constructions, in bat seals and combustible plastic pipe penetrations

PROPERTIES

  • Ultra-thin design to allow installation into tightest of areas
  • High performance intumescent
  • Not visible once installed

TECHNICAL SPECIFICATIONS:

Colour: Black
Sizes: Pipes 32 – 200mm (L- 25m roll W-40mm)
Installation Temperature: +5 - 35°C
Shelf life: 18 months if stored correctly
Density: Approximately 1.2g/cm³
Volume Expansion @450°C: Approximately 25 times
Expansion Pressure N/mm²: Up to max 1.30
Fire Rating: Up to 120 minutes

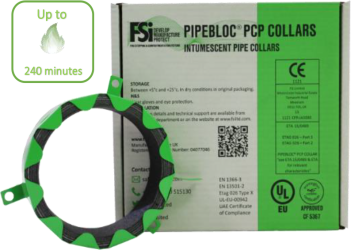

PIPE COLLARS PCP

PipeBloc® PCP Collars are designed and tested to seal service penetration apertures containing plastic and metallic pipes both with and without insulation. PipeBloc® PCP has been developed to provide a high volume expansion and pressure seal in the event of a fire. The PipeBloc® PCP Collars can be used on pipes to a maximum diameter of 250mm for internal and external applications. The ultra-thin profile of PipeBloc® PCP Collars shells, a depth of 30mm or 40mm allows for the installation into the tightest of locations.

APPLICATIONS:

  • Stopseal Bat system
  • Around combustible pipes
  • Angled combustible pipes through walls
  • Rigid floors with 150mm minimum thickness
  • Rigid wall with > 100mm minimum thickness
  • Flexible walls with > 100mm minimum thickness

PROPERTIES

  • Internal use only
  • Environmentally friendly
  • Halogen free, resist fungi and vermin
  • Allows thermal and mechanical movement of pipe
  • Halogen free, contains no asbestos, ceramic or mineral fibres

TECHNICAL SPECIFICATIONS:

Colour / Appearance: Green Steel – 3 Fixing Tabs
Plastic Types:  PVC-U, PVC-C, ABS, SAN + PVC, PE-HD, PE, PP
Expansion Rate: 20:1
Expansion Pressure N/mm²: 1.30
Working Temperature: -20ͦC to +120ͦC
Shelf life: N/A
Fire Rating: Up to 240 minutes

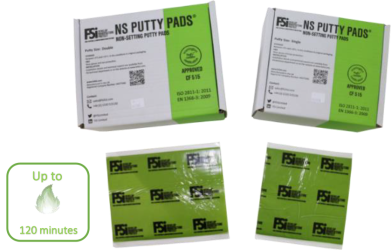

NS PUTTY PADS®

NS Putty® Pads are a pre-cut ablative pads designed for easy application around single and double electrical sockets where fire resistance must be upheld in the event of a fire.

APPLICATIONS:

  • Maintains a fire and smoke barrier around sockets in flexible wall systems

PROPERTIES

  • Simple to install
  • Internal use only
  • High tack adhesion
  • Environmentally friendly
  • Highly flexible and water resistant
  • Not affected by fungus, vermin or rodents
  • Pliable and mouldable with excellent self-bonding properties
  • Halogen free, contains no asbestos, ceramic or mineral fibres

TECHNICAL SPECIFICATIONS:

Colour: Green
Size: 170mm x 170mm x 4mm
Density: 1.55 – 1.6 g/cm³
Activation: 250ͦC
Shelf life: 12 months
Fire Resistance: Up to 120 minutes

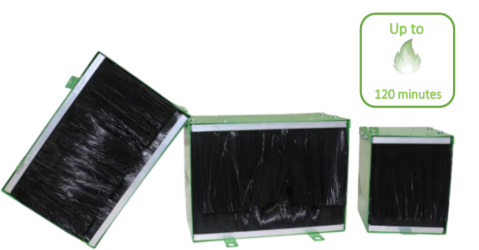

PASS-IT TRANSIT SYSTEM®

Pass-It® Transit System is a pre-assembled, multi layered reactive intumescent device encased in a 2 part powder coated steel shell. It is designed to prevent the passage of fire between compartment floors and walls, whilst still allowing for the easy installation and removal of services without destruction of the seal. There are a wide range of different sizes available depending on the number and size of the services required to penetrate. It can be formed into a modular grid or linear format, allowing an easy route for services to travel.

APPLICATIONS:

  • Modular builds
  • Reinstate fire resistance through walls
  • Penetration of multi-service penetrations

PROPERTIES

  • Internal use
  • Instant entry / re-entry
  • Easy installation of services
  • 11 different size combinations
  • Brackets included in the pack
  • Can be module fixed together
  • Superior Level of Sustainability
  • Good Acoustic Isolation on Properties
  • Use of advanced Intumescent Technology
  • Ideal for Historical Building Upgrades or new build

TECHNICAL SPECIFICATIONS:

Colour / Appearance: Green Steel – 3 Fixing Tabs
Plastic Types: PVC-U, PVC-C, ABS, SAN + PVC, PE-HD,PE, PP
Expansion Rate: 20:1
Expansion Pressure: N/mm²: 1.30
Working Temperature: -20ͦC to +120ͦC
Shelf life: N/A
Fire Rating: Up to 120 minutes
